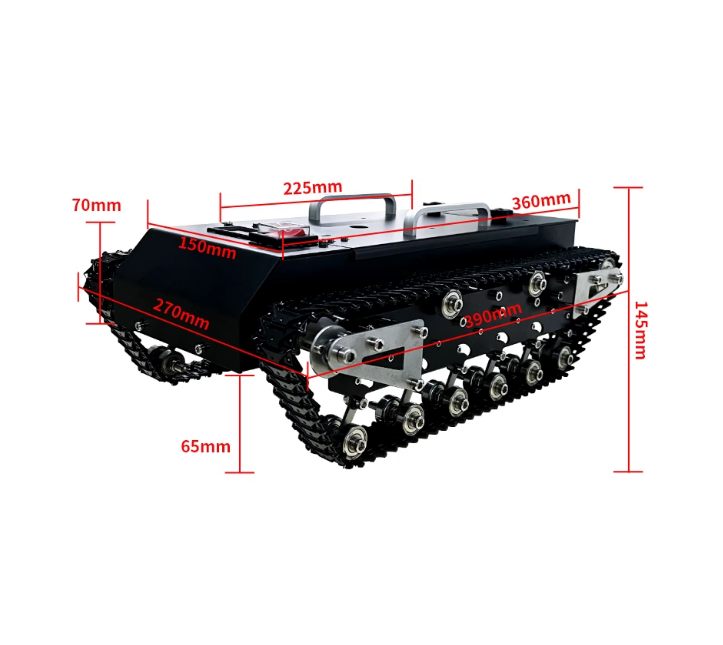

Size: 390 * 270 * 145mm
Internal dimensions: 200 * 125 * 65mm
Track width: 40mm
Net weight of chassis: 6.6kg
Design load capacity: approximately 20kg

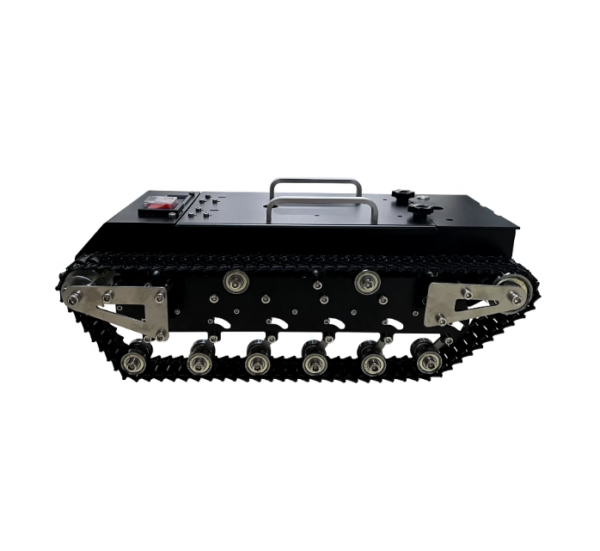

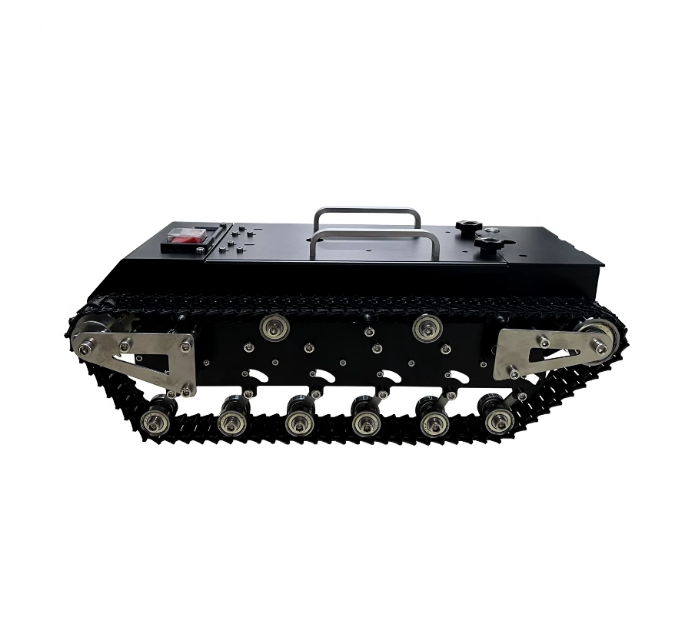

Suspension design: 6 independent suspensions on each side
Main material and surface treatment: steel and baking paint process
Power parameters: 40W/12 * 2
Speed: 0~1.0m/s
Maximum obstacle crossing: 70mm
Maximum climbing: 30 °
Maximum span: 150mm
