Dimensions of the shape：1500*1027*429mm
Ground clearance：192mm
Steepness of slope：≥ 30°
Self-weight：Approximately 280 kg
Load capacity：Rated capacity 300 kg
Reducer：Planetary (high transmission efficiency)
Control method：Remote control/CAN (remote control range approximately 400 meters)
Rated speedRated speed：3.6 km/h (Speed Closed-loop Control)
Material：Carbon steel
Normal battery life：Depending on usage, it can go without load for approximately 3.5 hours.
Motor：Brushless 1200W * 2
Braking method：Electrical braking
Motor：48v
Battery：48V 45AH Lead-acid

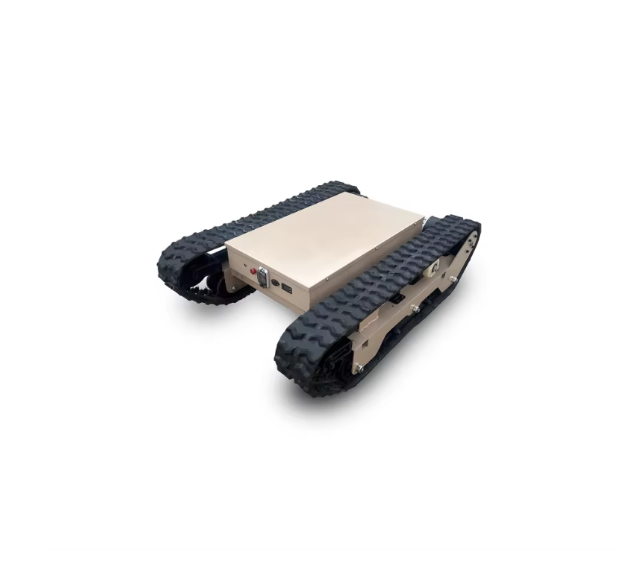

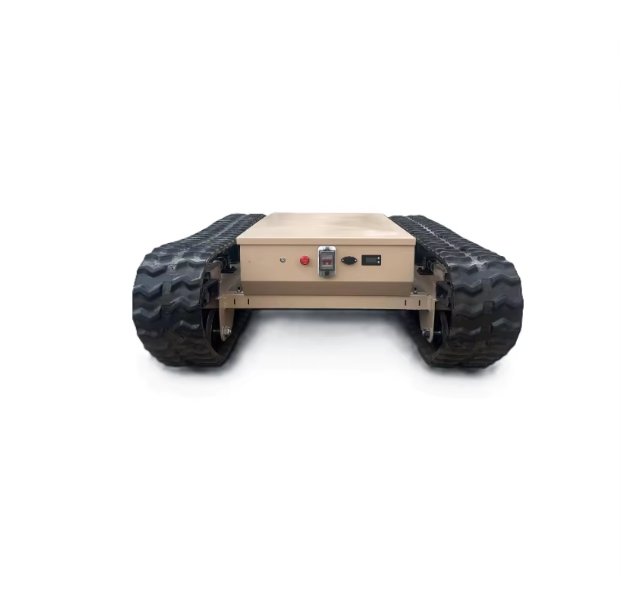

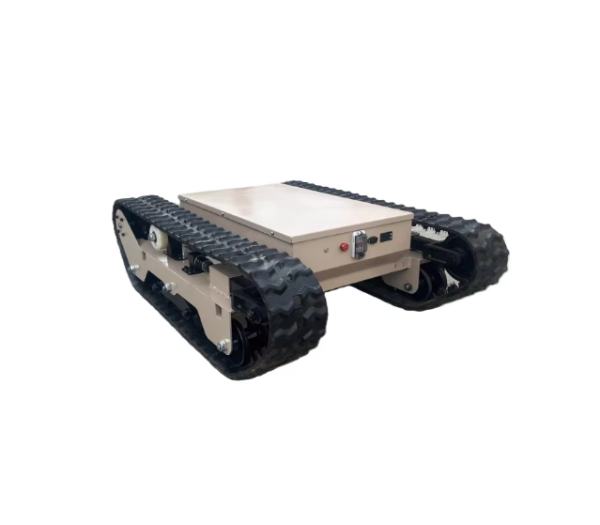

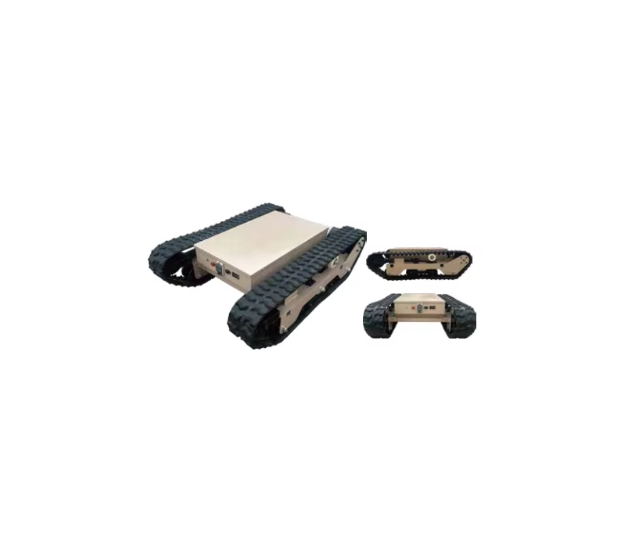

This crawler chassis is made of carbon steel, with an off-road clearance of 192mm, a climbing angle of over 30°, a load capacity of 300Kg, and is compatible with various modules such as pesticide application, weed removal, transportation, etc. It is controlled by remote control/CAN (300 meters), driven by two 1200W motors, has a battery life of approximately 4 hours, has a sturdy and durable structure, is easy to operate, and is suitable for agricultural operations in complex terrains.
